FL5 Alignment Numbers Explained – What They Actually Mean

A Honda Civic Type R FL5 recently had a full wheel alignment after a performance wheel and tyre upgrade.

Many customers see the alignment sheet but don’t fully understand what the numbers mean.

This guide breaks down the key values and how they affect the car.

---

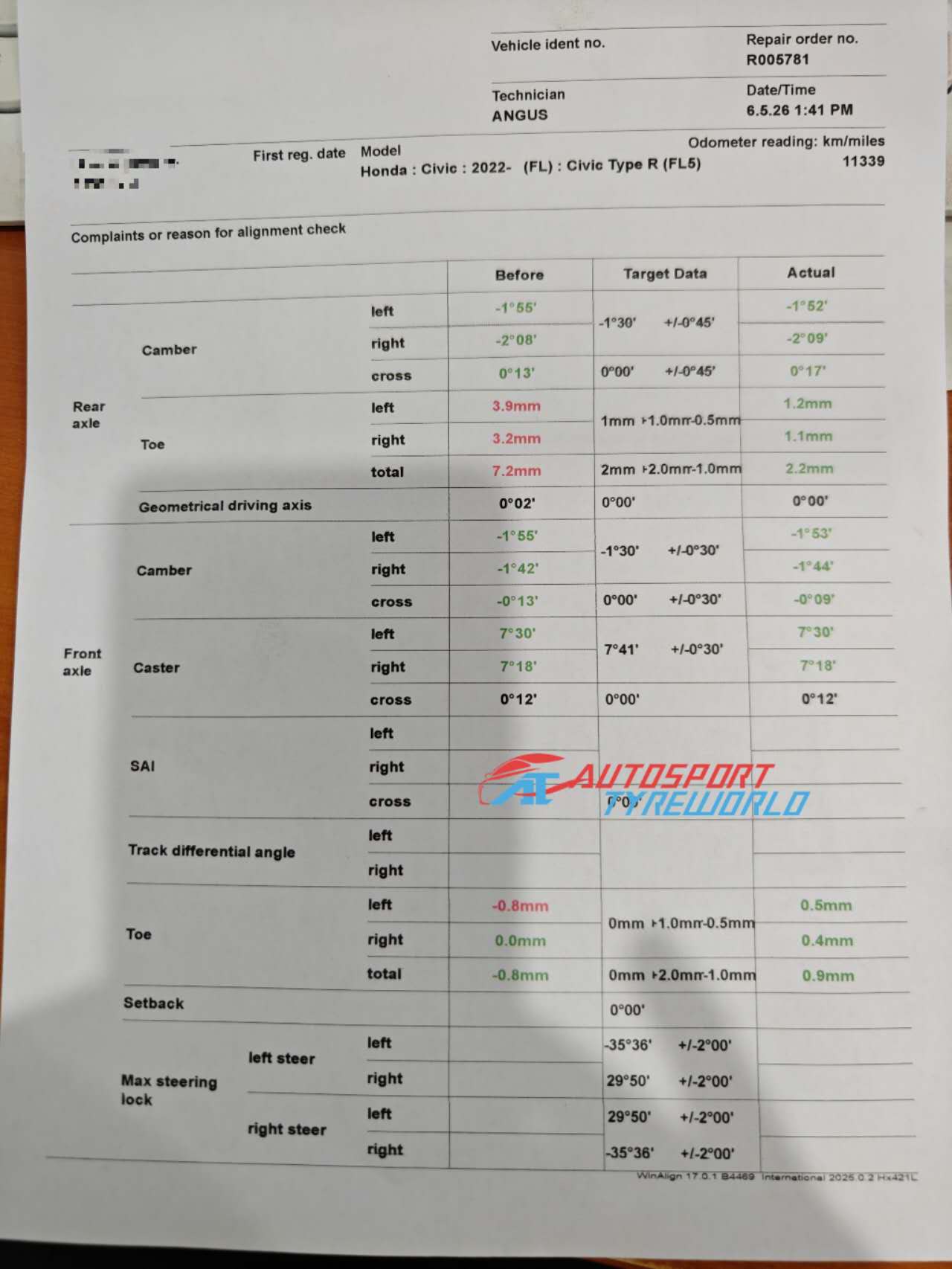

Understanding the Alignment Sheet

The alignment report shows three key sections:

• Camber
• Toe
• Caster

Each one affects how the car drives in a different way.

---

Camber – Tyre Contact Under Load

Camber is the angle of the wheel when viewed from the front.

Negative camber means the top of the wheel leans inward.

From the report:

Front camber is around:

• Left: about -1.5°
• Right: about -1.4°

Rear camber slightly more negative.

---

What This Means

More negative camber:

• improves cornering grip
• keeps tyre flat during turns
• reduces outer edge wear in aggressive driving

Too much camber:

• increases inner tyre wear
• reduces straight-line grip

👉 This setup is slightly performance-oriented but still usable on the street.

---

Toe – Stability and Tyre Wear

Toe is one of the most important alignment settings.

It describes whether the wheels point inward or outward.

---

Before Adjustment

From the report:

• rear toe was significantly out
• total rear toe was excessive

👉 This can cause:

• unstable rear behaviour
• rapid tyre wear
• poor straight-line tracking

---

After Adjustment

Toe was corrected to:

• balanced left and right
• within specification

---

What Toe Does

Toe affects:

• straight-line stability
• steering response
• tyre wear

Small changes in toe make a big difference.

👉 Correct toe = stable and predictable car

---

Caster – Steering Feel and Return

Caster is the angle of the steering axis.

From the report:

• around 7°+ on both sides
• balanced left to right

---

What This Means

Higher caster:

• improves steering feel
• helps steering return to centre
• increases stability at speed

👉 FL5 already has strong caster from factory, which is good for performance.

---

Rear Toe – The Most Important Fix

One of the biggest improvements in this setup:

👉 rear toe correction

Before:

• uneven
• excessive

After:

• balanced
• within target range

---

Why Rear Toe Matters So Much

Rear toe directly affects:

• high-speed stability
• corner exit behaviour
• confidence under acceleration

Incorrect rear toe:

• makes the car feel unstable
• reduces traction

---

Alignment + Tyre + Wheel Relationship

This FL5 is running:

• 18x10 +40 wheels
• 265 tyres (AD09)

Wider tyres increase grip but also:

👉 amplify alignment sensitivity

---

Without Proper Alignment

• tyre wears unevenly
• grip is inconsistent
• steering feels off

---

With Proper Alignment

• full tyre contact
• consistent grip
• predictable handling

---

Real-World Result

After alignment:

• steering is more precise
• car tracks straight
• cornering grip improves
• tyre wear becomes more even

---

Why Alignment Is Critical for Performance Builds

For setups like FL5 with wider wheels:

👉 alignment is not optional

It is part of the build.

---

Where to Get Alignment Done in Adelaide

For performance alignment, it is important to choose a workshop that understands:

• performance tyres
• wheel fitment
• driving goals

Autosport Tyre World provides alignment tailored to real-world setups.

---

Final Thoughts

Alignment numbers are not just data.

They directly affect:

• how the car feels
• how it grips
• how long tyres last

Understanding these numbers helps you get the most out of your setup.

---

FAQ

What is camber?

Camber is the tilt of the wheel, affecting cornering grip.

---

What is toe?

Toe controls stability and tyre wear.

---

What is caster?

Caster affects steering feel and return.

---

Why is alignment important?

It ensures tyres and suspension work correctly.

---

Does wider wheel need different alignment?

Yes, wider setups require more precise alignment.

---

How often should I check alignment?

After wheel changes or if tyre wear is uneven.

---
