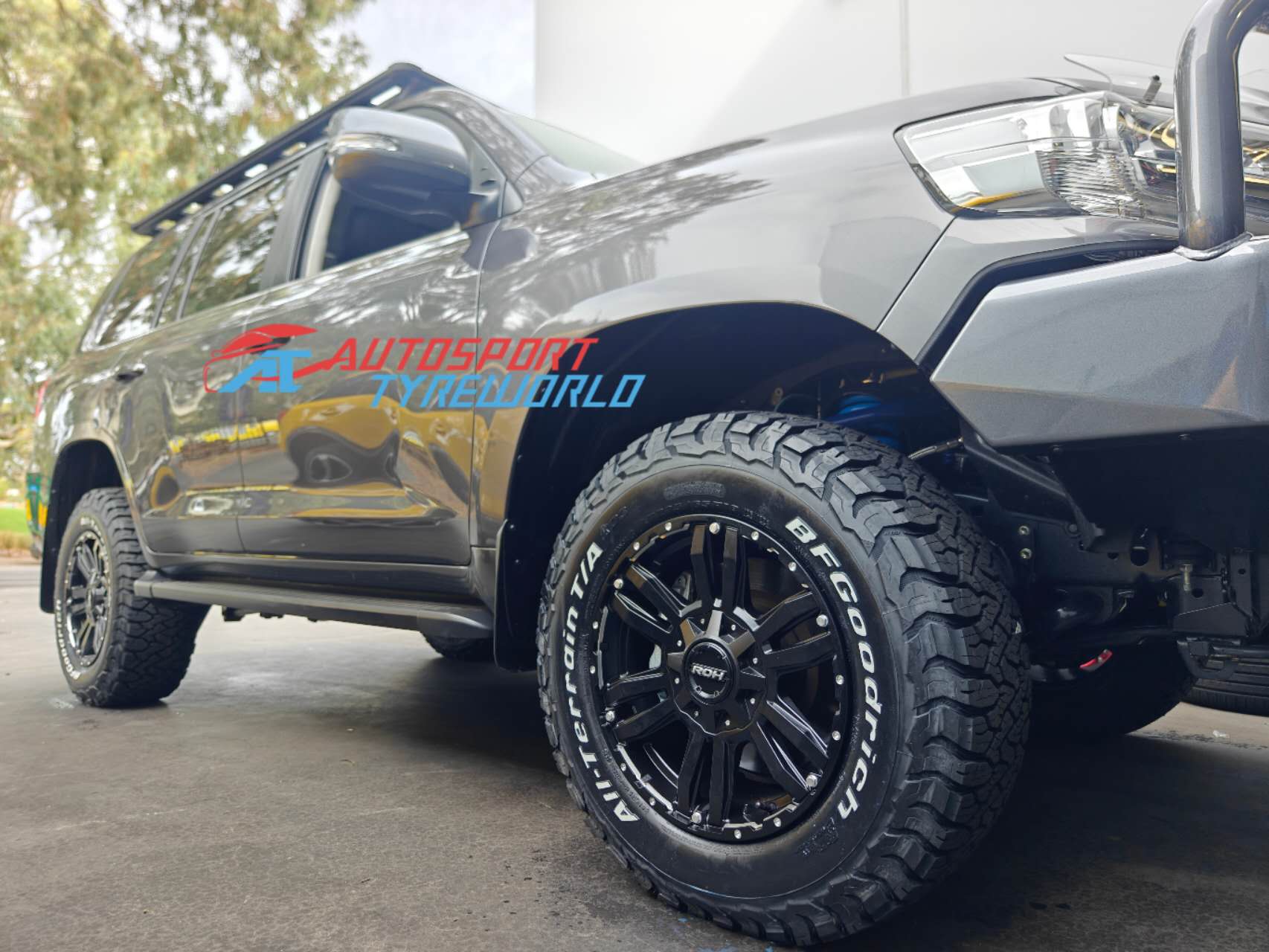

Toyota Land Cruiser 200 Wheel Upgrade: ROH Vapour + BFGoodrich KO3 (With Alignment Report)

Real Upgrade Story from Adelaide

A customer brought in their Toyota Land Cruiser 200 looking for a serious upgrade — something that works both on-road and off-road, without compromise.

We completed a full package:

• Wheels: ROH Vapour 18x9 +47
• Tyres: BFGoodrich KO3 285/65R18
• Full professional alignment with report

Wheels: ROH Vapour 18x9 +47 (5x150)

👉 Product link (Shopify):
https://autostw.com.au/products/roh-vapour?_pos=5&_sid=31e27b912&_ss=r

The ROH Vapour is one of the most proven LC200 wheels in Australia.

• Load rating: up to 1500kg per wheel
• Designed specifically for heavy-duty 4WD platforms
• Strong twin 6-spoke design with off-road durability
• Ideal for GVM upgrades and touring setups

This is not just a styling upgrade — it is built for real weight, real terrain, and real use.

Tyres: BFGoodrich KO3 285/65R18

Next-generation all-terrain tyre combining durability, traction and daily drivability

👉 Product link (Shopify):
https://autostw.com.au/products/285-65r18lt-125-122s-bfgoodrich-ko3-pre-order-eta-1-to-2-days?_pos=2&_sid=2e2e1fd13&_ss=r

The BFGoodrich All-Terrain T/A KO3 is the evolution of one of the most trusted A/T tyres globally.

Why this tyre works perfectly on LC200:

• Strong sidewall for off-road protection
• Excellent traction on dirt, sand, and rocks
• Improved wet grip vs previous KO2 generation
• More stable and quieter for highway driving

Why 285/65R18 is the Ideal LC200 Upgrade

This size is one of the most popular upgrades for the LC200 platform:

• Increased ground clearance
• Larger footprint for traction
• Better ride comfort with taller sidewall
• Strong visual stance without compromising drivability

Combined with 18x9 wheels, it creates a balanced and reliable setup.

The Critical Step: 4-Wheel Alignment (With Report)

Most shops stop at fitting wheels and tyres. That is where problems start.

At Autosport Tyre World, we go further.

After installation, we completed a full professional 4-wheel alignment and generated a detailed report for this LC200.

Why Alignment is Essential

• Prevents uneven wear on 285 tyres
• Keeps steering straight and stable
• Improves braking and control
• Extends tyre life significantly
• Protects suspension geometry

What We Provide

• Before and after alignment readings
• Camber, caster, toe data
• Manufacturer spec comparison
• Full transparency report (attached to this blog)

This is the difference between just fitting tyres and doing the job properly.

Final Result

After installation and alignment, the LC200 now has:

• Stronger and more aggressive stance
• Reliable off-road capability
• Stable highway performance
• Even tyre wear ensured by precision alignment

This is a complete upgrade — not just parts, but a properly engineered setup.

Wheel Alignment Report Explained – Toyota Land Cruiser 200

After fitting the new ROH Vapour wheels and 285/65R18 BFGoodrich KO3 tyres, we completed a full professional 4-wheel alignment to ensure the setup performs correctly.

Rear Axle Summary

• Rear camber is within normal range
• Slight toe imbalance left to right
• Minor thrust angle (0°10') detected

This is common on LC200 due to its solid rear axle design. It cannot be fully adjusted but must be accounted for during alignment.

Front Axle Adjustments (Key Area)

Camber

• Balanced and within spec on both sides
• No issues detected

Caster

• Slightly higher than factory spec (common with bull bar fitted)
• Provides strong straight-line stability
• Minor side-to-side variation corrected as much as possible

Toe (Most Important Adjustment)

• Corrected from uneven values to balanced setup
• Final total toe: 2.7mm (within specification)

This is the most critical correction to ensure:

• Even tyre wear
• Straight steering
• Stable highway driving

Final Result

After alignment, this LC200 now delivers:

• Straight and stable driving
• Improved steering feel
• Even tyre wear across all four tyres
• Corrected geometry for upgraded wheel and tyre setup

Why Alignment Matters After Wheel Upgrades

On vehicles like the LC200, especially with:

• Larger tyres (285/65R18)
• Aftermarket wheels
• Added front weight (bull bar)

A proper alignment is essential.

Without it, you risk:

• Uneven tyre wear
• Steering pull
• Reduced tyre lifespan

Professional Setup at Autosport Tyre World

This alignment report shows the difference between simply fitting tyres and completing a properly engineered setup.

At Autosport Tyre World, every wheel and tyre upgrade is finished with:

• Precision alignment
• Measured data before and after
• Real-world driving results
