Tyre Components
An Inside Look at the Anatomy of a Modern Car Tyre
Modern passenger car tyres are complex, precision-engineered products developed over more than a century of innovation.
Today’s steel-belted radial tyres are the result of continuous technological progress — a blend of chemistry, engineering, and materials science working together to deliver safety, comfort, and performance on every journey.
Continental has played a pioneering role in this evolution — from introducing the world’s first tread pattern in 1904 to advancing steel and textile cord technologies that define modern tyres.

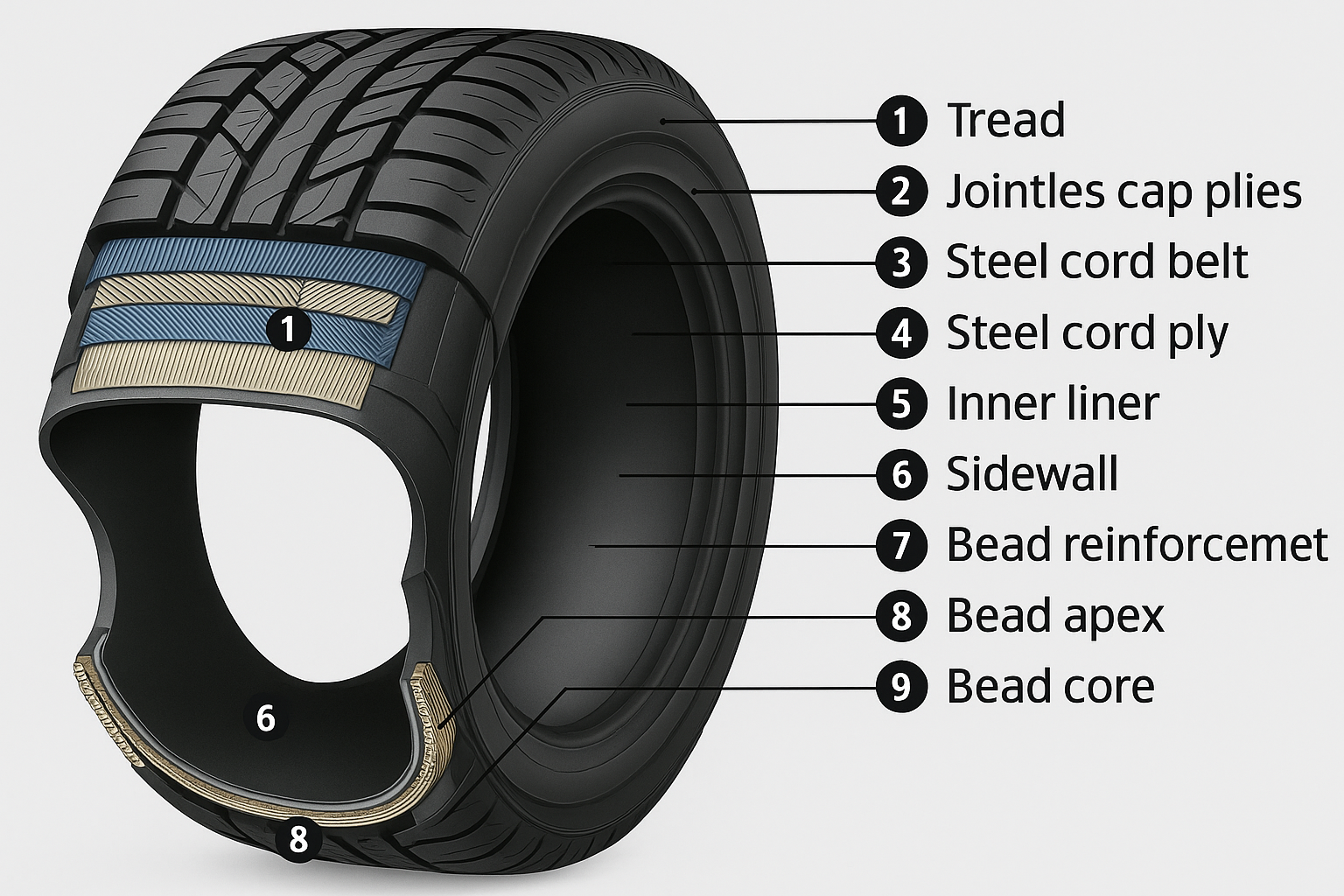

Two Main Structural Elements
A tyre consists of two primary structural elements:
-
The Tread and Belt Assembly – the outer layers that interact with the road
-
The Casing (Carcass) – the inner structure that supports air pressure and load
Together, these layers form a system that balances grip, durability, and driving comfort.
Tread and Belt Assembly: Keeping You on the Road
The tread and belt assembly is responsible for traction, steering stability, fuel efficiency, and wear resistance. It is the tyre’s outer armour — where design meets performance.
1. Tread
Made from a blend of synthetic and natural rubber, the tread provides grip, water evacuation, and long-lasting performance.
It consists of three key zones:
-
Cap: The top layer that contacts the road. It ensures optimal grip, wear resistance, and directional stability.
-
Base: Located beneath the cap, this layer reduces rolling resistance and protects the internal structure.
-
Shoulder: The outer edges of the tread that ensure a smooth transition to the sidewall, enhancing cornering stability.
Continental’s Contribution (1904):
Continental was the first tyre manufacturer to introduce a tread pattern to pneumatic tyres, revolutionising road grip and water dispersion.
2. Jointless Cap Plies
Directly beneath the tread lies a spiral-wrapped nylon cord embedded in rubber — known as the jointless cap ply.
It wraps continuously around the tyre’s circumference, allowing for high-speed stability and uniform pressure distribution.
Historical Innovation (1923):
Continental replaced traditional woven linen fabrics with single-direction cord fabric — reducing friction between threads and dramatically extending tyre life.
3. Steel Cord Belt Plies
These strong steel belts give the tyre rigidity and strength.
They:
-
Enhance shape retention and stability,
-
Reduce rolling resistance,
-
Improve mileage performance.
Steel belts also protect the casing from impact damage and ensure smooth handling, even at high speeds.
Casing (Carcass): The Tyre’s Inner Structure
The casing acts as the tyre’s backbone — maintaining shape, absorbing shock, and containing pressurised air.
Contrary to popular belief, it’s the air pressure inside the tyre, not the rubber itself, that supports the vehicle’s weight. That’s why maintaining correct tyre pressure is vital for safety and performance.
4. Textile Cord Ply
This layer, made from rubberised rayon or polyester fabric, helps the tyre retain its shape under pressure and load. It also ensures flexibility and ride comfort.
5. Inner Liner
The inner liner is an airtight layer made from butyl rubber, performing the functions of a traditional inner tube. It:
-
Seals the air chamber, maintaining consistent tyre pressure,
-
Prevents air leakage, ensuring long-term durability in tubeless tyres.
6. Sidewall
Made primarily from natural rubber, the sidewall connects the tread to the bead area and protects the casing against:
-
External damage,
-
UV rays and weather exposure,
-
Abrasion during cornering.
The sidewall also displays critical tyre information such as size, load index, and speed rating.
Tyre Bead: The Connection to the Wheel
The tyre bead is the interface between the tyre and the wheel rim — ensuring a secure, airtight fit.
It’s made of several reinforced elements that anchor the tyre in place.
7. Bead Reinforcement
Constructed from nylon or aramid fibres, this reinforcement improves:
-
Directional stability,
-
Steering precision,
-
Responsiveness during cornering.
8. Bead Apex
A wedge of synthetic rubber that strengthens the bead area and enhances steering comfort.
It works together with the bead reinforcement to reduce vibration and improve ride quality.
9. Bead Core
The heart of the bead — a bundle of steel wires embedded in rubber.
The bead core ensures:
-
A firm fit between tyre and rim,
-
Secure mounting under high load and pressure,
-
Consistent sealing for tubeless designs.
From Components to Complete Tyre
Each of these layers works together in perfect harmony to create a tyre that balances:
-
Safety and comfort,
-
Performance and efficiency,
-
Strength and flexibility.
Through advanced manufacturing techniques, these components are precisely assembled, cured, and tested — resulting in the reliable, high-performance tyres used on modern vehicles.
